Quick Details

  • Use: Vehicles & Remote Control Toys
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: X-Team
  • Model Number: XTI-4074
  • Weight: 374g
  • KV: Custom
  • Diameter*Length: 39.8*73.8mm
  • Shaft Diameter: 5mm
  • Shaft Length: 20mm
  • Max Power: 2600w
  • Mounting Hole Depth: 7mm
  • Sensoored or Sensorless: Sensorless
  • Application: 1/8th or 1/5th scale rc vehicles,900-1500mm Boat

Packaging & Delivery

Packaging Details one piece per polyfoam protection packing, per carton box depends on customer's requirement.
Delivery Time 7-30 days after payment confirmed,based on quantity.



X-Team XTI-4074 Rc Brushless Inrunner Motor RC Electric Brushless Motor

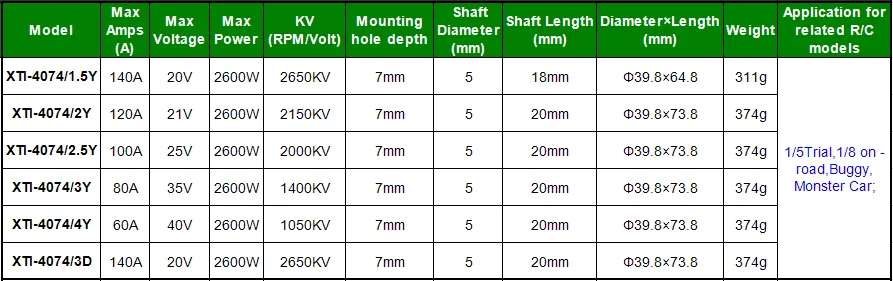

1.Specification:



Brand: X-Team(Support OEM & ODM)
Weight: 374g
Number of stator slot: 12G 4P
Sensored or sensorless: Sensorless
Shaft Diameter: 5mm
Shaft Length: 20mm

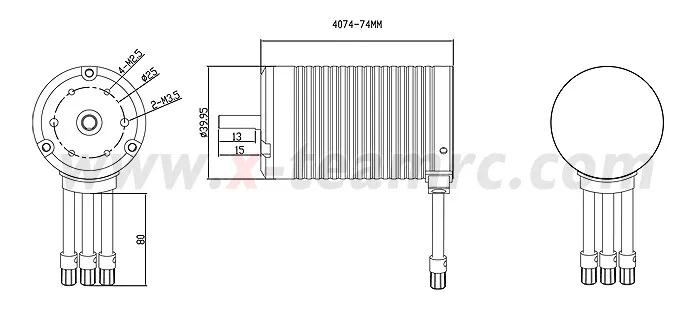

Motor size: Diameter Φ39.8*73.8mm
Stator diameter: Φ38mm
Available winding: Delta/Star (Δ/Y)
Available for class 750- 1/8th or 1/5th scale vehicle,900-1500mm Boat.




2.Technique:

• High quality CNC aluminum case,ensure lightweight and optimized air flow.

• High RPM,precision ball bearing(NMB bearing,import from japan)

• Low Resistance, High Power ,silver plated solder tabs.

• Hand-wound for maximum copper fill,High Purity copper windings ensure maximun conductivity.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.
• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.

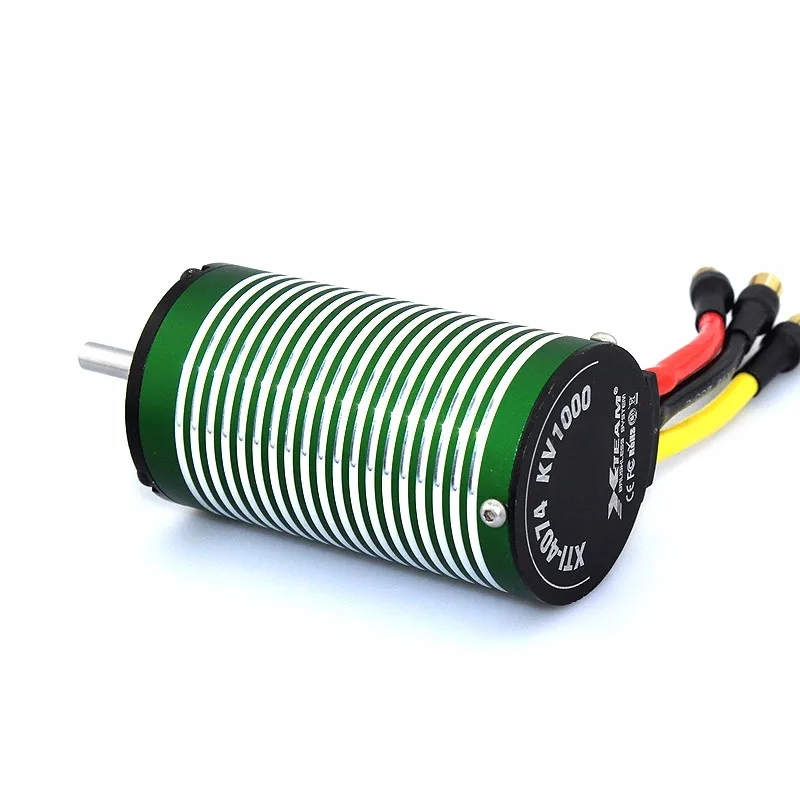

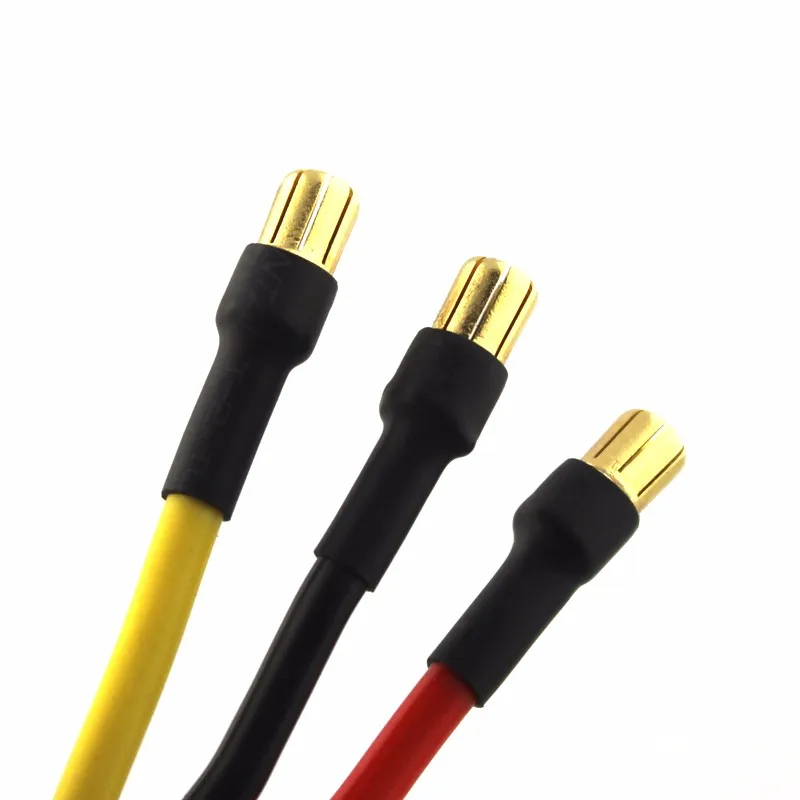

3.Product Image:






4.Certification:





5.Model Exhibition:

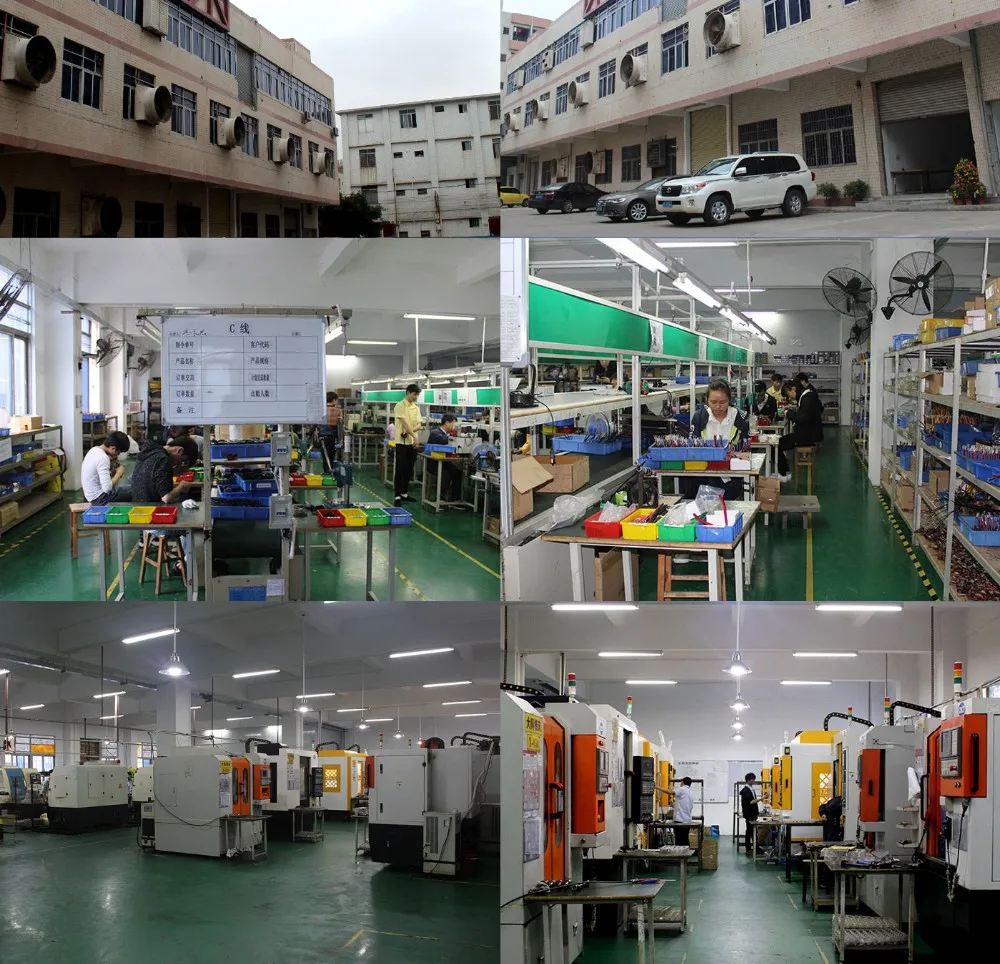

6.Company Show and Packing:
